DianaDAESO Class Reference

#include <DianaDAESO.hpp>

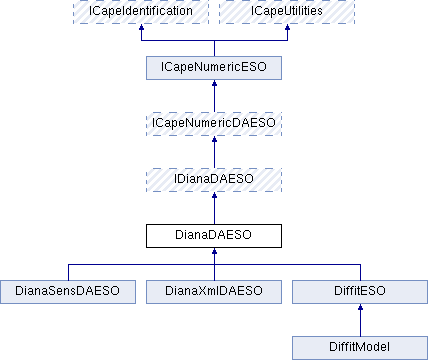

Inheritance diagram for DianaDAESO:
IDianaDAESO ICapeNumericDAESO ICapeNumericESO ICapeIdentification ICapeUtilities DianaSensDAESO DianaXmlDAESO DiffitESO DiffitModel

List of all members.

Public Member Functions

 DianaDAESO (const Common::Types::CapeString &_name, const Common::Types::CapeString &_description, Common::Types::CapeLong _nVars, Common::Types::CapeLong _nEqns, Common::Types::CapeLong _nRealParams, Common::Types::CapeLong _nStructureParams, Common::Types::CapeLong _nIntegerParams, Common::Types::CapeLong _nHelpVariables, Common::Types::CapeLong _nPhi=0, Common::Types::CapeLong _nPlaces=0)
 DianaDAESO (const DianaDAESO &org)
virtual ~DianaDAESO ()
virtual DIANA_DAESO_CLONERET * clone () throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
const Common::Types::CapeString & GetComponentName () const throw (Common::Error::ECapeUnknown)
void SetComponentName (const Common::Types::CapeString &_name) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
const Common::Types::CapeString & GetComponentDescription () const throw (Common::Error::ECapeUnknown)
void SetComponentDescription (const Common::Types::CapeString &_description) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
Common::Collection::ICapeCollection * GetParameters () throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation)
Common::Collection::ICapeCollection * GetStateVariables () throw (Common::Error::ECapeUnknown)
void SetSimulationContext (Common::Identification::ICapeIdentification *simContextManager) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl)
void Initialize () throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeOutOfResources, Common::Error::ECapeLicenceError, Common::Error::ECapeBadInvOrder)
void Reset () throw (Common::Error::ECapeUnknown)
void Terminate () throw (Common::Error::ECapeUnknown, Common::Error::ECapeOutOfResources, Common::Error::ECapeBadInvOrder)
Common::Types::CapeLong GetNumVars () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
Common::Types::CapeLong GetNumEqns () throw (Common::Error::ECapeUnknown)
Common::Types::CapeLong GetNumRealParams () throw (Common::Error::ECapeUnknown)
void SetFixedVariables (const Common::Types::CapeArrayLong &varIndices, const Common::Types::CapeArrayDouble &varValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds, Common::Error::ECapeNoImpl)
void SetAllVariables (const Common::Types::CapeArrayDouble &varValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
void SetVariables (const Common::Types::CapeArrayLong &varIndices, const Common::Types::CapeArrayDouble &varValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
const
Common::Types::CapeArrayDouble & 		GetAllVariables () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
Common::Types::CapeArrayDouble GetVariables (const Common::Types::CapeArrayLong &varIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
Common::Collection::ICapeCollection * GetRealParameters () throw (Common::Error::ECapeUnknown)
void SetAllRealParameters (const Common::Types::CapeArrayDouble &parValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
void SetRealParameters (const Common::Types::CapeArrayLong &parIndices, const Common::Types::CapeArrayDouble &parValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
const
Common::Types::CapeArrayDouble & 		GetAllRealParameters () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
virtual
Common::Types::CapeArrayDouble 		GetRealParameters (const Common::Types::CapeArrayLong &parIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
const
Common::Types::CapeArrayDouble & 		GetAllResiduals () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder, Common::Error::ECapeFailedInitialisation)
Common::Types::CapeArrayDouble GetResiduals (const Common::Types::CapeArrayLong &eqnIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeBadInvOrder, Common::Error::ECapeFailedInitialisation)
const Diana::DianaSparseArray & GetJacobianStruct () throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
const Diana::DianaSparseArray & GetAllJacobianValues () throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
Common::Types::CapeArrayDouble GetJacobianValues (const Common::Types::CapeArrayLong &indices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeNoImpl, Common::Error::ECapeOutOfBounds)
void SetVariablesIndex (const Common::Types::CapeArrayLong &varIndexes) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeNoImpl)
const
Common::Types::CapeArrayDouble & 		GetLowerBounds () throw (Common::Error::ECapeUnknown)
const
Common::Types::CapeArrayDouble & 		GetUpperBounds () throw (Common::Error::ECapeUnknown)
void SetAllDerivatives (const Common::Types::CapeArrayDouble &derValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
const
Common::Types::CapeArrayDouble & 		GetAllDerivatives () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
Common::Types::CapeArrayDouble GetDerivatives (const Common::Types::CapeArrayLong &derIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
void SetDerivatives (const Common::Types::CapeArrayLong &derIndices, const Common::Types::CapeArrayDouble &derValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
const Diana::DianaSparseArray & GetDiffJacobianStruct () throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
const Diana::DianaSparseArray & GetAllDiffJacobianValues () throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
Common::Types::CapeArrayDouble GetDiffJacobianValues (const Common::Types::CapeArrayLong &indices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeNoImpl, Common::Error::ECapeOutOfBounds)
void SetIndependentVar (Common::Types::CapeDouble indVar) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
Common::Types::CapeDouble GetIndependentVar () throw (Common::Error::ECapeUnknown)
void SaveState (const Common::Types::CapeString &filename) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
void LoadState (const Common::Types::CapeString &filename) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
void LoadStateDiva (const Common::Types::CapeString &states, const Common::Types::CapeString &params, const Common::Types::CapeString &mapfile=Common::Types::CapeString()) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
const Diana::DianaSparseArray & GetHighOrderJacobian (Common::Types::CapeLong nXOrder, Common::Types::CapeLong nDOrder, Common::Types::CapeLong nPOrder) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
DianaParameter * GetVariable (const Common::Types::CapeString &name) const throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
CapeArrayDouble GetAbsoluteError () const throw (Common::Error::ECapeUnknown)
virtual const CapeArrayDouble & GetExplicitEventTimes ()
virtual void calculatePhiFunctions ()
void SaveState () throw (Common::Error::ECapeUnknown)
void RestoreState () throw (Common::Error::ECapeUnknown)
void BeforeStep (Diana::IDianaNumericDAESolver *solver) throw (Common::Error::ECapeUnknown)
void AfterStep (Diana::IDianaNumericDAESolver *solver) throw (Common::Error::ECapeUnknown)
const
Common::Types::CapeArrayDouble & 		GetAllPhiValues () throw (Common::Error::ECapeUnknown)
Common::Types::CapeDouble GetPhiValue (CapeLong index) throw (Common::Error::ECapeUnknown)
IDianaPetriNet * GetPetriNet () throw (Common::Error::ECapeUnknown)
virtual const DianaSparseArray & GetAllParJacobianValues (const Common::Types::CapeArrayLong &parIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
virtual const DianaSparseArray & GetAllParJacobianValues (const Common::Types::CapeArrayLong *const parIndices=NULL) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
Common::Types::CapeDouble FindEventTime (int phi_index)
Common::Types::CapeDouble FindEventTime (Common::Types::CapeDouble t1, Common::Types::CapeDouble t2, int phi_index)
virtual void MoveToTime (Common::Types::CapeDouble t)

Protected Types

enum  enumJacobianType { jtStateVariables, jtDerivatives }

Protected Member Functions

void setChangedFlags (DianaVariableType bChanged)
virtual DianaDAESO * createClone (const DianaDAESO &original)
Common::Types::CapeString makeVarName (const Common::Types::CapeString name, const Common::Types::CapeArrayLong &indices) throw (Common::Error::ECapeUnknown)
Common::Types::CapeString makeVarName (const Common::Types::CapeString name, const int idxAmount,...) throw (Common::Error::ECapeUnknown)
int getVarPosition (void *var, DianaVariableType type) const throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
Common::Types::CapeBoolean isAscendantIndices (const Common::Types::CapeArrayLong &idx, const std::vector< DianaVariableType > &type)
virtual void calculateHelpVariables ()
virtual void calculateConstantHelpVariables ()
virtual void calculateResiduals ()=0
Common::Types::CapeBoolean makeMatrixPartitioning (const Diana::DianaSparseArray &dsarray, std::vector< Common::Types::CapeArrayLong > &grouping)
void calculateFDJacobiMatrix (enumJacobianType type)
Common::Types::CapeBoolean calculateFDJacobiMatrixPartition (enumJacobianType type, CapeDouble dblFDDir=1.0)
Common::Types::CapeBoolean calculateFDJacobiMatrixSimple (enumJacobianType type, CapeDouble dblFDDir=1.0)
Common::Types::CapeBoolean calculateFDParJacobiMatrix (const Common::Types::CapeArrayLong &parIndices)
void checkResidualFiniteness () throw (Common::Error::ECapeUnknown)
void checkMatrixFiniteness (const Diana::DianaSparseArray &mat) throw (Common::Error::ECapeUnknown)

Protected Attributes

Common::Types::CapeBoolean bInitialized
Common::Types::CapeString name
 ESO name.
Common::Types::CapeString description
 ESO description.
Diana::DianaCollection collParameters
 collections of the exported parameters
Diana::DianaCollection collStateVariables
 collections of the state variables
Diana::DianaCollection collRealParameters
 collections of the real parameters
Common::Types::CapeDouble dblIndependentVar
 independent variable
Common::Types::CapeArrayDouble arrStates
 state variables array
Common::Types::CapeArrayDouble arrUpperBounds
 upper bounds for the state variables
Common::Types::CapeArrayDouble arrLowerBounds
 lower bounds for the state variables
Common::Types::CapeArrayDouble arrDerivatives
 derivatives of the state variables
Common::Types::CapeArrayDouble arrResiduals
 array with calculated residuals
Common::Types::CapeArrayDouble arrRealParams
 real parameters array
Common::Types::CapeArrayLong arrIntegerParams
 integer parameters array
Common::Types::CapeArrayLong arrStructureParams
 integer parameters array
Common::Types::CapeArrayDouble arrHelpVariables
 help variables array
Common::Types::CapeArrayBoolean arrPlaces
 place array
std::vector< std::vector
< CapeLong * > > 		arrPlaceIndexPointers
 index instances to set for charFunc
std::vector< std::vector
< CapeLong > > 		arrPlaceIndexValues
 values for index instances
std::vector< CharFunction > arrCharFunctions
 array of charFunctions for places, indexed by position
std::vector< CharFunction > arrForkFunctions
 array of charFunctions for places, indexed by position
Diana::DianaSparseArray mtrValuesJacobi
Diana::DianaSparseArray mtrStructJacobi
Diana::DianaSparseArray mtrValuesDiffJacobi
Diana::DianaSparseArray mtrStructDiffJacobi
Diana::DianaSparseArray mtrValuesParJacobi
std::vector< DianaVariableType > bESOChanged
Common::Types::CapeBoolean bFDPartition
Common::Types::CapeLong nFDOrder
Common::Types::CapeDouble dblFDEpsilon
Common::Types::CapeArrayDouble arrFDResidual
 residuals helper array for the finite differences
Common::Types::CapeArrayDouble arrFDVariables
 states helper array for the finite differences
Common::Types::CapeArrayDouble arrFDEpsilons
 epsilons helper array for the finite differences
std::vector
< Common::Types::CapeArrayLong > 		arrJacobianGrouping
std::vector
< Common::Types::CapeArrayLong > 		arrDiffJacobianGrouping
PetriNet * petriNet
 Petri net of model.
Common::Types::CapeArrayDouble arrPhi
 phi values array
Common::Types::CapeArrayDouble arrExplicitEventTimes
 time points of explicit events

Friends

class DianaParameter

Detailed Description

Diana realization of the ICapeNumericDAESO interface

Constructor & Destructor Documentation

DianaDAESO ( const Common::Types::CapeString &  _name,
const Common::Types::CapeString &  _description,
Common::Types::CapeLong  _nVars,
Common::Types::CapeLong  _nEqns,
Common::Types::CapeLong  _nRealParams,
Common::Types::CapeLong  _nStructureParams,
Common::Types::CapeLong  _nIntegerParams,
Common::Types::CapeLong  _nHelpVariables,
Common::Types::CapeLong  _nPhi = 0,
Common::Types::CapeLong  _nPlaces = 0
)

Constructor. Allocates memory for internal arrays.

DianaDAESO ( const DianaDAESO &  org)

Copy constructor for deep copy

virtual ~DianaDAESO ( ) [virtual]

Destructor. Frees memory.

Member Function Documentation

void AfterStep ( Diana::IDianaNumericDAESolver *  solver) throw (Common::Error::ECapeUnknown) [virtual]

Implementation of method AfterStep()of IDianaDAESO interface

Implements IDianaDAESO.

void BeforeStep ( Diana::IDianaNumericDAESolver *  solver) throw (Common::Error::ECapeUnknown) [virtual]

Implementation of method BeforeStep()of IDianaDAESO interface

Implements IDianaDAESO.

virtual void calculateConstantHelpVariables ( ) [inline, protected, virtual]

Calculate static entries in arrHelpVars ( h(p) )

Common::Types::CapeBoolean calculateFDParJacobiMatrix ( const Common::Types::CapeArrayLong &  parIndices) [protected]

calculates Entries in mtxParJacobian for the parameters given in parIndices return true if it worked well.

virtual void calculateHelpVariables ( ) [inline, protected, virtual]

Calculate dynamic entries in arrHelpVars ( h(x,p,t) )

virtual void calculatePhiFunctions ( ) [virtual]

Updates array arrPhi with a values of the hybrid model's phi-functions.

virtual void calculateResiduals ( ) [protected, pure virtual]

calculateResiduals updates array pResidualsVector with a values of the

\[F(t,x,\dot{x}) = B\dot{x}-f(t,x)\]

.

Implemented in DiffitModel, DiffitESO, and DianaSensDAESO.

void checkResidualFiniteness ( ) throw (Common::Error::ECapeUnknown) [protected]

Function checks residual vector for the finite values (not NaN, Inf or -Inf) Throws warning exception if there at lest one non finite value.

virtual DIANA_DAESO_CLONERET* clone ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl) [virtual]

cloning operation, returns a freshly allocated ESO, owned by the caller

Implements IDianaDAESO.

virtual DianaDAESO* createClone ( const DianaDAESO &  original) [inline, protected, virtual]

This Method is subclass-dependent. It should internally call the subclass-copy-constructor and return a freshly allocated clone without values. The values for all variables are filled in the clone() method.

Reimplemented in DiffitESO.

Common::Types::CapeDouble FindEventTime ( int  phi_index)

Called from Switch() method in PetriNet class for correspondent phi-function by it's index. Finds exact time of phi-function switching. Calls FindEventTime(Common::Types::CapeDouble t1, Common::Types::CapeDouble t2, int phi_index) to find exact time of crossing zero in the given time boundaries.

Common::Types::CapeDouble FindEventTime ( Common::Types::CapeDouble  t1,
Common::Types::CapeDouble  t2,
int  phi_index
)

Calculates exact time of switching in the given time boundaries for given phi-function index. Uses Brent method for this purpose. Brent's method is a root-finding algorithm which combines root bracketing, interval bisection, and inverse quadratic interpolation. It is sometimes known as the van Wijngaarden-Deker-Brent method.

const Common::Types::CapeArrayDouble& GetAllDerivatives ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets the values of the derivatives for all the variables. The length of the array returned will be equal to the number of variables, but the values of derivatives which do not appear in the equation system may be meaningless.

Implements ICapeNumericDAESO.

Reimplemented in DianaSensDAESO.

const Diana::DianaSparseArray& GetAllDiffJacobianValues ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl) [virtual]

Returns a matrix object whose GetValues method will provide the differential Jacobian values at the ESO s current variable values each time it is called (the values of entries indicated as uncomputable in the matrix returned by GetDiffJacobianStruct will be meaningless, but the call to GetValues will not cause an error simply because such entries exist).

Implements ICapeNumericDAESO.

Reimplemented in DiffitESO, and DianaSensDAESO.

const Diana::DianaSparseArray& GetAllJacobianValues ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl) [virtual]

Returns a matrix object whose GetValues method will provide the Jacobian values at the ESO's current variable values each time it is called (the values of entries indicated as uncomputable in the matrix returned by GetJacobianStruct will be meaningless, but the call to GetValues will not cause an error simply because such entries exist).

Implements ICapeNumericESO.

Reimplemented in DiffitModel, and DianaSensDAESO.

const Common::Types::CapeArrayDouble& GetAllPhiValues ( ) throw (Common::Error::ECapeUnknown) [virtual]

All PhiFunctions of the model

Implements IDianaDAESO.

const Common::Types::CapeArrayDouble& GetAllRealParameters ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets the value of all real parameters.

Implements IDianaDAESO.

const Common::Types::CapeArrayDouble& GetAllResiduals ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder, Common::Error::ECapeFailedInitialisation) [virtual]

Gets the value of all the residuals.

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

const Common::Types::CapeArrayDouble& GetAllVariables ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets the value of all variables.

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

const Common::Types::CapeString& GetComponentDescription ( ) const throw (Common::Error::ECapeUnknown) [virtual]

gets the description of the component.

Implements ICapeIdentification.

const Common::Types::CapeString& GetComponentName ( ) const throw (Common::Error::ECapeUnknown) [virtual]

gets the name of the component.

Implements ICapeIdentification.

Common::Types::CapeArrayDouble GetDerivatives ( const Common::Types::CapeArrayLong &  derIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [virtual]

Gets the value of a subset of the derivatives.

Parameters:
varIndicesthe indices of the variables whose derivatives we wish to get.

Implements ICapeNumericDAESO.

Reimplemented in DianaSensDAESO.

const Diana::DianaSparseArray& GetDiffJacobianStruct ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl) [virtual]

Returns a matrix object which contains information on the structure of the differential Jacobian matrix. The GetValues method of this object will provide values encoded as follows:

  • -1.0 indicates an entry which cannot be computed by the ESO.
  • 0.0 indicates an entry which will always be zero.
  • Any other value indicates a nonzero, computable entry.

Implements ICapeNumericDAESO.

Reimplemented in DianaSensDAESO.

Common::Types::CapeArrayDouble GetDiffJacobianValues ( const Common::Types::CapeArrayLong &  indices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeNoImpl, Common::Error::ECapeOutOfBounds) [virtual]

Gets the values of selected entries of the differential Jacobian, at the current variable values of the ESO.

Parameters:
indicesthe indices of selected elements. The semantics are those of the matrix's GetValues method

Implements ICapeNumericDAESO.

virtual const CapeArrayDouble& GetExplicitEventTimes ( ) [virtual]

Calculates Timepoints of explicit events

Common::Types::CapeDouble GetIndependentVar ( ) throw (Common::Error::ECapeUnknown) [virtual]

Gets the current value of the independent variable in the DAESO.

Implements ICapeNumericDAESO.

Reimplemented in DianaSensDAESO.

const Diana::DianaSparseArray& GetJacobianStruct ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl) [virtual]

Returns a matrix object which contains information on the structure of the Jacobian matrix. The GetValues method of this object will provide values encoded as follows :

  • -1.0 indicates an entry which cannot be computed by the ESO.
  • 0.0 indicates an entry which will always be zero.
  • Any other value indicates a nonzero, computable entry.

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

Common::Types::CapeArrayDouble GetJacobianValues ( const Common::Types::CapeArrayLong &  indices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeNoImpl, Common::Error::ECapeOutOfBounds) [virtual]

Gets the values of selected entries of the Jacobian, at the current variable values of the ESO.

Parameters:
indicesthe indices of selected elements. The semantics are those of the matrix's GetValues method.

Implements ICapeNumericESO.

const Common::Types::CapeArrayDouble& GetLowerBounds ( ) throw (Common::Error::ECapeUnknown) [virtual]

Returns array of lower bounds for the state vector.

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

Common::Types::CapeLong GetNumEqns ( ) throw (Common::Error::ECapeUnknown) [virtual]

Gets the number of equations in this ESO.

Implements ICapeNumericESO.

Common::Types::CapeLong GetNumRealParams ( ) throw (Common::Error::ECapeUnknown)

Gets the number of real parameters in this ESO.

Common::Types::CapeLong GetNumVars ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets the number of variables of this ESO.

Implements ICapeNumericESO.

Common::Collection::ICapeCollection* GetParameters ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation) [virtual]

Returns an ICapeCollection interface. This interface will contain a collection of ICapeParameter interfaces. This method allows any client to access all the Cape Open Parameters exposed by a model component. If the model component does not support exposing its parameters, it should raise the ECapeNoImpl error, instead of returning a NULL reference or an empty Collection. But if the PMC supports parameters but has for this call no parameters, it should return a valid ICapeCollection reference exposing zero parameters.

Implements ICapeUtilities.

IDianaPetriNet* GetPetriNet ( ) throw (Common::Error::ECapeUnknown) [virtual]

Returns Petri net of current ESO.

Implements IDianaDAESO.

Common::Types::CapeDouble GetPhiValue ( CapeLong  index) throw (Common::Error::ECapeUnknown) [virtual]

Returns value of phi-function by its index.

Implements IDianaDAESO.

Common::Collection::ICapeCollection* GetRealParameters ( ) throw (Common::Error::ECapeUnknown) [virtual]

Returns a collection with a real parameters of the model, generated by promot. Order of the real parameters in the collection is the same as result of function GetAllRealParameters, which returns a vector instead of collection.

Implements IDianaDAESO.

virtual Common::Types::CapeArrayDouble GetRealParameters ( const Common::Types::CapeArrayLong &  parIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [virtual]

Gets the value of a subset of the real parameters.

Parameters:
varIndicesthe indices of the parameters we wish to get.

Implements IDianaDAESO.

Common::Types::CapeArrayDouble GetResiduals ( const Common::Types::CapeArrayLong &  eqnIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeBadInvOrder, Common::Error::ECapeFailedInitialisation) [virtual]

Gets the value of a subset of the residuals.

Parameters:
eqnIndicesthe indices of the equations we wish to get the residuals from.

Implements ICapeNumericESO.

Common::Collection::ICapeCollection* GetStateVariables ( ) throw (Common::Error::ECapeUnknown) [virtual]

Returns a collection with a state variables of the model. Order of the state variables in the collection is the same as result of function GetVariables, which returns a vector instead of collection.

Implements IDianaDAESO.

const Common::Types::CapeArrayDouble& GetUpperBounds ( ) throw (Common::Error::ECapeUnknown) [virtual]

Returns array of upper bounds for the state vector.

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

Common::Types::CapeArrayDouble GetVariables ( const Common::Types::CapeArrayLong &  varIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [virtual]

Gets the value of a subset of the variables.

Parameters:
varIndicesthe indices of the variables we wish to get.

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

void Initialize ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeOutOfResources, Common::Error::ECapeLicenceError, Common::Error::ECapeBadInvOrder) [virtual]

The environment will order the component to get initialized through this method. Any initialisation that could fail must be placed here. Initialize is guaranteed to be the first method called by the client (except low level methods such as class constructors or initialization persistence methods). Initialize has to be called once when the component is instantiated in a particular flowsheet. When the initialization fails, before signalling an error, the component must free all the resources that were allocated before the failure occurred. When the environment receives this error, it may not use the component anymore. The method terminate of the current interface must not either be called. Hence, the environment may only release the component through the middleware native mechanisms.

Implements ICapeUtilities.

Reimplemented in DiffitModel, DiffitESO, DianaSensDAESO, and DianaXmlDAESO.

virtual void MoveToTime ( Common::Types::CapeDouble  t) [virtual]

Integrates till the given time. Called from FindEventTime(CapeDouble t1, CapeDouble t2, int phi_index) method to find exact value of phi-function in any instance of time between t1 and t2.

void Reset ( ) throw (Common::Error::ECapeUnknown)

Reset all variables and parameters to their default state.

void RestoreState ( ) throw (Common::Error::ECapeUnknown)

Restores all the data of a hybrid model on a previous step of integration. Restores state variables, derivatives, phi-functions and independent variable

void SaveState ( ) throw (Common::Error::ECapeUnknown)

Saves current state of a hybrid model on a current stage of integration. Saves state variables, derivatives, phi-functions and independent variable

void SetAllDerivatives ( const Common::Types::CapeArrayDouble &  derValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [virtual]

Sets the numerical value of all the derivatives. The length of the array supplied must equal the number of variables: values for derivatives which do not appear in any of the equations can be ignored.

Parameters:
varValuesthe values of the derivatives.

Implements ICapeNumericDAESO.

Reimplemented in DianaSensDAESO.

void SetAllRealParameters ( const Common::Types::CapeArrayDouble &  parValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [virtual]

Sets the value of all real parameters of this ESO.

Parameters:
varValuesthe values of all the parameters we wish to set

Implements IDianaDAESO.

void SetAllVariables ( const Common::Types::CapeArrayDouble &  varValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [virtual]

Sets the value of all variables of this ESO.

Parameters:
varValuesthe values of all the variables we wish to set

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

void setChangedFlags ( DianaVariableType  bChanged) [protected]

Returns old value (from previous step) of the independent variable. Returns old value of phi-function by it's index.

Reimplemented in DianaSensDAESO.

void SetComponentDescription ( const Common::Types::CapeString &  _description) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument) [virtual]

sets the description of the component.

Parameters:
_descriptionthe description of the component

Implements ICapeIdentification.

void SetComponentName ( const Common::Types::CapeString &  _name) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument) [virtual]

sets the name of the component.

Parameters:
_namethe name of the component

Implements ICapeIdentification.

void SetDerivatives ( const Common::Types::CapeArrayLong &  derIndices,
const Common::Types::CapeArrayDouble &  derValues
) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [virtual]

Sets the value of a subset of the derivatives.

Parameters:
varIndicesthe indices of the variables whose derivatives we wish to get.
varValuesthe values of all the derivatives we wish to set

Implements ICapeNumericDAESO.

Reimplemented in DianaSensDAESO.

void SetFixedVariables ( const Common::Types::CapeArrayLong &  varIndices,
const Common::Types::CapeArrayDouble &  varValues
) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds, Common::Error::ECapeNoImpl) [virtual]

Sets the value of some variables and marks these variables as fixed.

Parameters:
varIndicesthe indices of the variables we wish to set
varValuesthe values of the variables we wish to set

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

void SetIndependentVar ( Common::Types::CapeDouble  indVar) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument) [virtual]

Sets the value of the independent variable in the DAESO.

Parameters:
indVarthe value of the independent variable

Implements ICapeNumericDAESO.

Reimplemented in DianaSensDAESO.

void SetRealParameters ( const Common::Types::CapeArrayLong &  parIndices,
const Common::Types::CapeArrayDouble &  parValues
) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [virtual]

Sets the value of some parameters.

Parameters:
varIndicesthe indices of the parameters we wish to set
varValuesthe values of all the parameters we wish to set

Implements IDianaDAESO.

void SetSimulationContext ( Common::Identification::ICapeIdentification *  simContextManager) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl) [virtual]

Allows the environment to convey the component a reference to the former's simulation context. The simulation context will be environment objects which will expose a given set of Cape Open interfaces. Each of these interfaces will allow the component to call back the environment in order to benefit from its exposed services (such as creation of material templates, diagnostics or measurement unit conversion). If the component does not support accessing the simulation context, it is recommended to raise the ECapeNoImpl error.

Parameters:
simContextManagerthe reference to the environment's simulation context class. For the component to use this class, this reference will have to be converted to each of the defined Cape Open Simulation Context interfaces.

Implements ICapeUtilities.

void SetVariables ( const Common::Types::CapeArrayLong &  varIndices,
const Common::Types::CapeArrayDouble &  varValues
) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [virtual]

Sets the value of some variables.

Parameters:
varIndicesthe indices of the variables we wish to set
varValuesthe values of all the variables we wish to set

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

void SetVariablesIndex ( const Common::Types::CapeArrayLong &  varIndexes) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeNoImpl) [virtual]

Currently not implemented.

Implements ICapeNumericESO.

Reimplemented in DianaSensDAESO.

void Terminate ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeOutOfResources, Common::Error::ECapeBadInvOrder) [virtual]

The environment will order the component to get destroyed through this method. Any uninitialization that could fail must be placed here. Terminate is guaranteed to be the last method called by the client (except low level methods such as class destructors). Terminate may be called at any time, but may be only called once. When this method returns an error, the environment should report the user. However, after that the environment is not allowed to use the component anymore.

Implements ICapeUtilities.

Reimplemented in DianaSensDAESO.

Friends And Related Function Documentation

friend class DianaParameter [friend]

This friend declaration is used only for the parameters internal pointers.

Member Data Documentation

Diana::DianaSparseArray mtrStructDiffJacobi [protected]

Structure of the Jacobi matrix

\[\partial F/\partial \dot{x} \]

Diana::DianaSparseArray mtrStructJacobi [protected]

Structure of the Jacobi matrix

\[\partial F/\partial x \]

Diana::DianaSparseArray mtrValuesDiffJacobi [protected]

Jacobi matrix

\[\partial F/\partial \dot{x} \]

Diana::DianaSparseArray mtrValuesJacobi [protected]

Jacobi matrix

\[\partial F/\partial x \]

Diana::DianaSparseArray mtrValuesParJacobi [protected]

Jacobi matrix

\[\partial F(\dot{x},x,p,t)/\partial p\]

The documentation for this class was generated from the following file:
Generated on Mon Jun 27 2016 10:42:33 for Diana by   doxygen 1.7.6.1
