ICapeNumericESO Class Reference

#include <CapeESO.hpp>

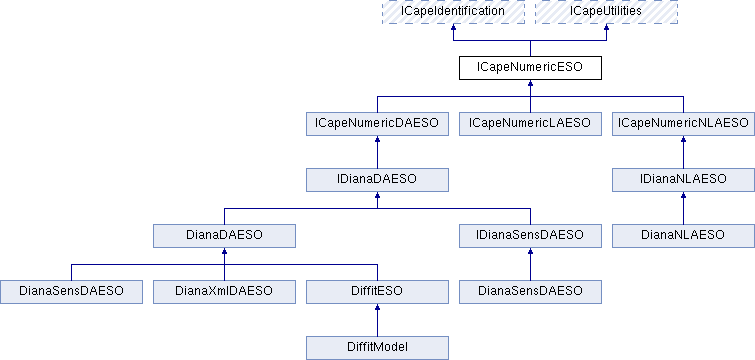

Inheritance diagram for ICapeNumericESO:
ICapeIdentification ICapeUtilities ICapeNumericDAESO ICapeNumericLAESO ICapeNumericNLAESO IDianaDAESO IDianaNLAESO DianaDAESO IDianaSensDAESO DianaNLAESO DianaSensDAESO DianaXmlDAESO DiffitESO DianaSensDAESO DiffitModel

List of all members.

Public Member Functions

virtual ~ICapeNumericESO ()
virtual Common::Types::CapeLong GetNumVars ()=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
virtual Common::Types::CapeLong GetNumEqns ()=0 throw (Common::Error::ECapeUnknown)
virtual void SetFixedVariables (const Common::Types::CapeArrayLong &varIndices, const Common::Types::CapeArrayDouble &varValues)=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds, Common::Error::ECapeNoImpl)
virtual void SetAllVariables (const Common::Types::CapeArrayDouble &varValues)=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
virtual void SetVariables (const Common::Types::CapeArrayLong &varIndices, const Common::Types::CapeArrayDouble &varValues)=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
virtual const
Common::Types::CapeArrayDouble & 		GetAllVariables ()=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
virtual
Common::Types::CapeArrayDouble 		GetVariables (const Common::Types::CapeArrayLong &varIndices)=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
virtual const
Common::Types::CapeArrayDouble & 		GetAllResiduals ()=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder, Common::Error::ECapeFailedInitialisation)
virtual
Common::Types::CapeArrayDouble 		GetResiduals (const Common::Types::CapeArrayLong &eqnIndices)=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeBadInvOrder, Common::Error::ECapeFailedInitialisation)
virtual const
Diana::DianaSparseArray & 		GetJacobianStruct ()=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
virtual const
Diana::DianaSparseArray & 		GetAllJacobianValues ()=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
virtual
Common::Types::CapeArrayDouble 		GetJacobianValues (const Common::Types::CapeArrayLong &indices)=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeNoImpl, Common::Error::ECapeOutOfBounds)
virtual void SetVariablesIndex (const Common::Types::CapeArrayLong &varIndexes)=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeNoImpl)
virtual const
Common::Types::CapeArrayDouble & 		GetLowerBounds ()=0 throw (Common::Error::ECapeUnknown)
virtual const
Common::Types::CapeArrayDouble & 		GetUpperBounds ()=0 throw (Common::Error::ECapeUnknown)

Friends

std::ostream & operator<< (std::ostream &out_file, const ICapeNumericESO &eso)

Detailed Description

This is the interface of the Equation Set Object which in the most general case represents a set of equations of the form:

\[F(x,\dot{x})=0.\]

In general, a set described by an ESO can be rectangular, i.e. the number of variables does not have to be the same as the number of equations.

The variables in an ESO are characterised by their current values (that can be changed via the provided interface), and also lower and upper bounds. Usually, these bounds relate to the domain of definition of the equations or physical reality. For this reason, any attempt to set one or more variables to values outside these bounds is considered to be illegal and will, therefore, be rejected. The equations in an ESO are assumed to be sparse, i.e. any given equation will involve only a subset of the variables in the ESO. Consequently, only a (usually small) subset of the partial derivatives $\partial F/\partial x$ are going to be nonzero for ant set of values of the variables $x$. The sparsity pattern of the ESO refers to the number of such nonzero elements, and the row $i$ (i.e. equation $F_i$) and column $j$ (i.e. variable $x_j$) to which each such nonzero corresponds. The way in which information on this structure is defined is entirely analogous to that for linear systems. The interface defined in this section provided mechanisms for obtaining information on the current values and bounds of the variables $x$, as well as the sparsity pattern of the ESO. It also allows the modification of the variable values, and the computation of the values («residuals») of the equations $F(x)$ for the current values of $x$ and of the nonzero elements of the matrix $\partial F/\partial x$.

Constructor & Destructor Documentation

virtual ~ICapeNumericESO ( ) [inline, virtual]

Virtual default destructor.

Member Function Documentation

virtual const Diana::DianaSparseArray& GetAllJacobianValues ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl) [pure virtual]

Returns a matrix object whose GetValues method will provide the Jacobian values at the ESO's current variable values each time it is called (the values of entries indicated as uncomputable in the matrix returned by GetJacobianStruct will be meaningless, but the call to GetValues will not cause an error simply because such entries exist).

Implemented in DiffitModel, DianaDAESO, DianaSensDAESO, IDianaSensDAESO, and DianaNLAESO.

Referenced by SteadyStateContinuation::packModelJacobian(), HopfPointContinuation::packModelJacobian(), SingAnalyser::packModelJacobian(), HopfPointContinuation::packModelResidual(), and SingAnalyser::packModelResidual().

virtual const Common::Types::CapeArrayDouble& GetAllResiduals ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder, Common::Error::ECapeFailedInitialisation) [pure virtual]

Gets the value of all the residuals.

Implemented in DianaDAESO, DianaSensDAESO, IDianaSensDAESO, and DianaNLAESO.

Referenced by SteadyStateContinuation::packModelResidual(), HopfPointContinuation::packModelResidual(), and SingAnalyser::packModelResidual().

virtual const Common::Types::CapeArrayDouble& GetAllVariables ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [pure virtual]

Gets the value of all variables.

Implemented in DianaSensDAESO, DianaDAESO, IDianaSensDAESO, and DianaNLAESO.

Referenced by SteadyStateContinuation::packModelVector(), HopfPointContinuation::packModelVector(), and SingAnalyser::packModelVector().

virtual const Diana::DianaSparseArray& GetJacobianStruct ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl) [pure virtual]

Returns a matrix object which contains information on the structure of the Jacobian matrix. The GetValues method of this object will provide values encoded as follows :

  • -1.0 indicates an entry which cannot be computed by the ESO.
  • 0.0 indicates an entry which will always be zero.
  • Any other value indicates a nonzero, computable entry.

Implemented in DianaDAESO, DianaSensDAESO, IDianaSensDAESO, and DianaNLAESO.

virtual Common::Types::CapeArrayDouble GetJacobianValues ( const Common::Types::CapeArrayLong &  indices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeNoImpl, Common::Error::ECapeOutOfBounds) [pure virtual]

Gets the values of selected entries of the Jacobian, at the current variable values of the ESO.

Parameters:
indicesthe indices of selected elements. The semantics are those of the matrix's GetValues method.

Implemented in DianaDAESO, and DianaNLAESO.

virtual const Common::Types::CapeArrayDouble& GetLowerBounds ( ) throw (Common::Error::ECapeUnknown) [pure virtual]

Returns array of lower bounds for the state vector.

Implemented in DianaDAESO, DianaSensDAESO, IDianaSensDAESO, and DianaNLAESO.

Referenced by SteadyStateContinuation::packModelBoundaries(), HopfPointContinuation::packModelBoundaries(), and SingAnalyser::packModelBoundaries().

virtual Common::Types::CapeLong GetNumEqns ( ) throw (Common::Error::ECapeUnknown) [pure virtual]

Gets the number of equations in this ESO.

Implemented in DianaNLAESO, and DianaDAESO.

Referenced by SteadyStateContinuation::getModelEquations(), HopfPointContinuation::HopfPointContinuation(), SingAnalyser::SingAnalyser(), and SteadyStateContinuation::SteadyStateContinuation().

virtual Common::Types::CapeLong GetNumVars ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [pure virtual]

Gets the number of variables of this ESO.

Implemented in DianaNLAESO, and DianaDAESO.

Referenced by SteadyStateContinuation::calcTestCondition(), SteadyStateContinuation::getModelVariables(), HopfPointContinuation::HopfPointContinuation(), and SteadyStateContinuation::SteadyStateContinuation().

virtual Common::Types::CapeArrayDouble GetResiduals ( const Common::Types::CapeArrayLong &  eqnIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeBadInvOrder, Common::Error::ECapeFailedInitialisation) [pure virtual]

Gets the value of a subset of the residuals.

Parameters:
eqnIndicesthe indices of the equations we wish to get the residuals from.

Implemented in DianaDAESO, and DianaNLAESO.

virtual const Common::Types::CapeArrayDouble& GetUpperBounds ( ) throw (Common::Error::ECapeUnknown) [pure virtual]

Returns array of upper bounds for the state vector.

Implemented in DianaDAESO, DianaSensDAESO, IDianaSensDAESO, and DianaNLAESO.

Referenced by SteadyStateContinuation::packModelBoundaries(), HopfPointContinuation::packModelBoundaries(), and SingAnalyser::packModelBoundaries().

virtual Common::Types::CapeArrayDouble GetVariables ( const Common::Types::CapeArrayLong &  varIndices) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [pure virtual]

Gets the value of a subset of the variables.

Parameters:
varIndicesthe indices of the variables we wish to get.

Implemented in DianaSensDAESO, DianaDAESO, IDianaSensDAESO, and DianaNLAESO.

virtual void SetAllVariables ( const Common::Types::CapeArrayDouble &  varValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [pure virtual]

Sets the value of all variables of this ESO.

Parameters:
varValuesthe values of all the variables we wish to set

Implemented in DianaSensDAESO, DianaDAESO, IDianaSensDAESO, and DianaNLAESO.

Referenced by SteadyStateContinuation::unpackModelVector(), HopfPointContinuation::unpackModelVector(), and SingAnalyser::unpackModelVector().

virtual void SetFixedVariables ( const Common::Types::CapeArrayLong &  varIndices,
const Common::Types::CapeArrayDouble &  varValues
) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds, Common::Error::ECapeNoImpl) [pure virtual]

Sets the value of some variables and marks these variables as fixed.

Parameters:
varIndicesthe indices of the variables we wish to set
varValuesthe values of the variables we wish to set

Implemented in DianaSensDAESO, DianaDAESO, IDianaSensDAESO, and DianaNLAESO.

virtual void SetVariables ( const Common::Types::CapeArrayLong &  varIndices,
const Common::Types::CapeArrayDouble &  varValues
) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [pure virtual]

Sets the value of some variables.

Parameters:
varIndicesthe indices of the variables we wish to set
varValuesthe values of all the variables we wish to set

Implemented in DianaSensDAESO, DianaDAESO, IDianaSensDAESO, and DianaNLAESO.

virtual void SetVariablesIndex ( const Common::Types::CapeArrayLong &  varIndexes) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeNoImpl) [pure virtual]

Currently not implemented.

Implemented in DianaDAESO, DianaSensDAESO, IDianaSensDAESO, and DianaNLAESO.

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  out_file,
const ICapeNumericESO &  eso
) [friend]

ostream output operator for the ICapeNumericESO class.

The documentation for this class was generated from the following file:
