#include <DiffitModel.hpp>

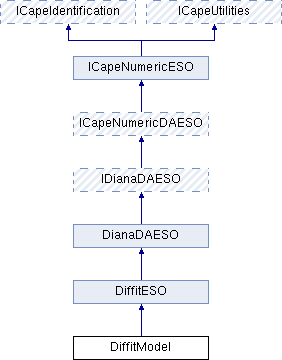

Inheritance diagram for DiffitModel:

Public Member Functions
	DiffitModel (const char description, const int NEQNS, const int NPARAMS, const double DefParameters, const double MinParameters, const double MaxParameters, const double DefYValues, const double MinYValues, const double MaxYValues, const char _ParameterNames, const char *_VariableNames)
	DiffitModel (const DiffitModel &org)
virtual void	Initialize () throw (Common::Error::ECapeBadInvOrder, Common::Error::ECapeLicenceError, Common::Error::ECapeOutOfResources, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeUnknown)
virtual void	calculateResiduals ()
const Diana::DianaSparseArray &	GetAllJacobianValues () throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
const Diana::DianaSparseArray &	GetAllParJacobianValues (const Common::Types::CapeArrayLong *parIndices=NULL) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl)
virtual int	observation (Glob globs, ExperimentSystem ex, double t, double y, double gy, double p, double dgdy, double *dgdp)=0
Protected Member Functions
Diana::DianaDAESO *	createClone ()
virtual void	jacobi (double t, double y, double jac, double p)=0
virtual void	inhomo (double t, double y, double inh, double p)=0
virtual void	inhomo1 (double t, double y, double inh1, double *p, int &jp)=0
virtual void	R2 (Glob globs, ExperimentSystem ex, int computeDerivs)=0
virtual void	R3 (Glob globs, ExperimentSystem ex, int computeDerivs)=0
virtual void	ode (double t, double y, double f, double *p)=0
const DianaSparseArray &	GuessJacobianStructure ()
Protected Attributes
const int	NEQNS
const int	NPARAMS
const char *	DefModelDescription
const double *	DefParameters
const double *	DefYValues
string *	ParameterNames
string *	VariableNames

Detailed Description

Direct superclass for all Diffit Models. This should partially be backmerged into DiffitESO.

Constructor & Destructor Documentation

DiffitModel ( const DiffitModel & org )

Copy CTOR

Member Function Documentation

virtual void calculateResiduals ( ) [virtual]

calculateResiduals updates array pResidualsVector with a values of the

$F(t,x,\dot{x}) = B\dot{x}-f(t,x)$

.

Reimplemented from DiffitESO.

Diana::DianaDAESO* createClone ( ) [protected]

const Diana::DianaSparseArray& GetAllJacobianValues ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl) [virtual]

Returns a matrix object whose GetValues method will provide the Jacobian values at the ESO's current variable values each time it is called (the values of entries indicated as uncomputable in the matrix returned by GetJacobianStruct will be meaningless, but the call to GetValues will not cause an error simply because such entries exist).

Reimplemented from DianaDAESO.

const Diana::DianaSparseArray& GetAllParJacobianValues ( const Common::Types::CapeArrayLong * parIndices = NULL ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeNoImpl) [virtual]

Symbolic implementation of the GetAllParJacobianValues

Reimplemented from DianaDAESO.

virtual void inhomo	(	double	t,
		double *	y,
		double **	inh,
		double *	p
	)		`[protected, pure virtual]`

GetParameters() p.setValue(p[i]) setVariables(y) setIndependentVar(t) setAllDerivatives(0) GetAllDiffJacobianValues() Function of old model interface, calculate jacobi

$\frac{\partial \vec f}{\partial \vec p}$

(inhomogenity) inh out of the state defined by the other parameters. This method is generated by model2diffit. It works generically by repeatedly calling inhomo1 for all parameters.

Parameters:

inh	out matrix
t	in time,
y	in state,
p	in parameters.

virtual void inhomo1	(	double	t,
		double *	y,
		double *	inh1,
		double *	p,
		int &	jp
	)		`[protected, pure virtual]`

Function of old model interface, calculate jacobi column

$\frac{\partial \vec f}{\partial p_i}$

inh1 out of the state defined by the other parameters. This method is generated by model2diffit. It works generically by repeatedly calling inhomo1 for all parameters.

Parameters:

inh1	out vector
t	in time,
y	in state,
p	in parameters.

virtual void Initialize ( ) throw (Common::Error::ECapeBadInvOrder, Common::Error::ECapeLicenceError, Common::Error::ECapeOutOfResources, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeUnknown) [virtual]

Initialize the model

Reimplemented from DiffitESO.

virtual void jacobi	(	double	t,
		double *	y,
		double **	jac,
		double *	p
	)		`[protected, pure virtual]`

Function of old model interface, calculate jacobi

$\frac{\partial \vec f}{\partial \vec x}$

into jac out of the states defined by the other parameters. This method is generated by model2diffit

Parameters:

jac	out matrix, must be filled with 0
t	in time,
y	in state,
p	in parameters.

virtual int observation	(	Glob *	globs,
		ExperimentSystem *	ex,
		double	t,
		double *	y,
		double *	gy,
		double *	p,
		double **	dgdy,
		double **	dgdp
	)		`[pure virtual]`

Obsolete function of the old models.

This one is left public, because the observation-indices can be detected by calling it. But it works only for generic observations.

Calculates an observation (i.e. additional algebraic variables) out of the state of the model. Usually it returns 1, meaning a generic observation which is just selected states of the model which are written to gy. In case of complex observations, these must be mappable to the original states and parameters by dgdy and dgdp.

virtual void R2	(	Glob *	globs,
		ExperimentSystem *	ex,
		int	computeDerivs
	)		`[protected, pure virtual]`

set data->me and data->mg according to number of constraints set data->r2[1..data->me]; (equal. constr., components must be == 0)

virtual void R3	(	Glob *	globs,
		ExperimentSystem *	ex,
		int	computeDerivs
	)		`[protected, pure virtual]`

set data->r3[1..data->mg]; (ineq. constr., components must be >= 0)

The documentation for this class was generated from the following file:

DiffitModel.hpp
