DianaXmlDAESO Class Reference

#include <DianaXmlDAESO.hpp>

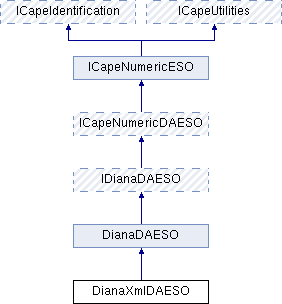

Inheritance diagram for DianaXmlDAESO:

List of all members.

Public Member Functions
	DianaXmlDAESO (const Common::Types::CapeString &_strXmlDataFile, const Common::Types::CapeString &_name, Common::Types::CapeLong _nVars, Common::Types::CapeLong _nEqns, Common::Types::CapeLong _nRealParams, Common::Types::CapeLong _nStructureParams, Common::Types::CapeLong _nIntegerParams, Common::Types::CapeLong _nHelpVariables, Common::Types::CapeLong _nPhi=0, Common::Types::CapeLong _nPlaces=0)
	DianaXmlDAESO (const DianaXmlDAESO &org)
void	Initialize () throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeOutOfResources, Common::Error::ECapeLicenceError, Common::Error::ECapeBadInvOrder)
virtual const CapeString &	getLoadDirectory ()
virtual void	setLoadDirectory (const CapeString &_dir)
virtual Common::Types::CapeBoolean	initializeData (void *input) throw (Common::Error::ECapeFailedInitialisation)
virtual Common::Types::CapeBoolean	initializeData (const Common::Types::CapeString &fileName=Common::Types::CapeStringUNDEFINED) throw (Common::Error::ECapeFailedInitialisation)
virtual Common::Types::CapeBoolean	initializeDataFromString (const Common::Types::CapeString &data) throw (Common::Error::ECapeFailedInitialisation)
virtual void	addSpar (const Common::Types::CapeString &_name, const Common::Types::CapeString &descr=Common::Types::CapeStringUNDEFINED)
virtual void	addIpar (const Common::Types::CapeString &_name, const Common::Types::CapeString &descr, const Common::Types::CapeArrayLong &idxLower, const Common::Types::CapeArrayLong &idxUpper)
virtual void	addRpar (const Common::Types::CapeString &_name, const Common::Types::CapeString &descr, const Common::Types::CapeArrayLong &idxLower, const Common::Types::CapeArrayLong &idxUpper)
virtual void	addHelp (const Common::Types::CapeString &_name, const Common::Types::CapeString &descr, const Common::Types::CapeArrayLong &idxLower, const Common::Types::CapeArrayLong &idxUpper)
virtual void	addState (const Common::Types::CapeString &_name, const Common::Types::CapeString &descr, const Common::Types::CapeArrayLong &idxLower, const Common::Types::CapeArrayLong &idxUpper)
virtual void	addPlace (const Common::Types::CapeString &_name, const Common::Types::CapeString &descr, const Common::Types::CapeArrayLong &idxLower, const Common::Types::CapeArrayLong &idxUpper, const Common::Types::CapeBoolean fork=false)
virtual void	addDirectTransition (const Common::Types::CapeString &_name, const Common::Types::CapeString &descr, const Common::Types::CapeArrayLong &idxLower, const Common::Types::CapeArrayLong &idxUpper)
virtual void	addExplicitTransition (const Common::Types::CapeString &_name, const Common::Types::CapeString &descr, const Common::Types::CapeArrayLong &idxLower, const Common::Types::CapeArrayLong &idxUpper)
virtual void	addImplicitTransition (const Common::Types::CapeString &_name, const Common::Types::CapeString &descr, const Common::Types::CapeArrayLong &idxLower, const Common::Types::CapeArrayLong &idxUpper)
virtual void	initParameter (const Common::Types::CapeString &name, const Common::Types::CapeArrayLong &value, const Common::Types::CapeArrayLong &minValue, const Common::Types::CapeArrayLong &maxValue)
virtual void	initPlace (const Common::Types::CapeString &name, const Common::Types::CapeArrayBoolean &value)
virtual void	initParameter (const Common::Types::CapeString &name, const Common::Types::CapeArrayDouble &value, const Common::Types::CapeArrayDouble &minValue, const Common::Types::CapeArrayDouble &maxValue)
virtual void	initState (const Common::Types::CapeString &name, const Common::Types::CapeArrayDouble &dblValue, const Common::Types::CapeArrayDouble &minValue, const Common::Types::CapeArrayDouble &maxValue, const Common::Types::CapeArrayDouble &absError)
virtual void	connectTransitionFrom (CapeLong transIndex, CapeLong placeIndex)
virtual void	connectTransitionTo (CapeLong transIndex, CapeLong placeIndex)
virtual void	addEquation (const Common::Types::CapeString &name, const Common::Types::CapeString &descr, const Common::Types::CapeLong startRow)
virtual void	addDiffPattern (Common::Types::CapeLong rowIndex, Common::Types::CapeLong colIndex)
virtual void	addJacPattern (Common::Types::CapeLong rowIndex, Common::Types::CapeLong colIndex)
virtual void	finishPatterns ()
Protected Attributes
CapeString	loadDirectory
Common::Types::CapeString	strXmlDataFile
	default XML file name with a model data
Private Attributes
Common::Types::CapeBoolean	bInitialized
Common::Types::CapeLong	curSpar
	current position in the structure parameters vector (used in addSpar)
Common::Types::CapeLong	curIpar
	current position in the integer parameters vector (used in addIpar)
Common::Types::CapeLong	curRpar
	current position in the real parameters vector (used in addRpar)
Common::Types::CapeLong	curHelp
	current position in the help variables vector (used in addHelp)
Common::Types::CapeLong	curState
	current position in the state variables vector (used in addState)
Common::Types::CapeLong	curPlace
	current position in the places vector (used in addPlace)
Common::Types::CapeLong	curExplicitTransition
	current position in the explicit transitions vector (used in addExplicitTransition)
Common::Types::CapeLong	curImplicitTransition
	current position in the implicit transitions vector (used in addImplicitTransition)
Common::Types::CapeArrayLong	iJRow
	array of the row indices in the RHS pattern (used in addJacPattern)
Common::Types::CapeArrayLong	iJCol
	array of the column indices in the RHS pattern (used in addJacPattern)
Common::Types::CapeArrayLong	iDRow
	array of the row indices in the LHS pattern (used in addDiffPattern)
Common::Types::CapeArrayLong	iDCol
	array of the column indices in the LHS pattern (used in addDiffPattern)

---

Detailed Description

This Class realizes the structure of storage for parameters and dynamic variables as well as the loading and storing to XML. it implements GetParameters from ICapeUtilities and a similar method for dynamic vars.

---

Constructor & Destructor Documentation

DianaXmlDAESO	(	const Common::Types::CapeString &	_strXmlDataFile,
		const Common::Types::CapeString &	_name,
		Common::Types::CapeLong	_nVars,
		Common::Types::CapeLong	_nEqns,
		Common::Types::CapeLong	_nRealParams,
		Common::Types::CapeLong	_nStructureParams,
		Common::Types::CapeLong	_nIntegerParams,
		Common::Types::CapeLong	_nHelpVariables,
		Common::Types::CapeLong	_nPhi = 0,
		Common::Types::CapeLong	_nPlaces = 0
	)

Main constructor.

DianaXmlDAESO

(

const DianaXmlDAESO &

org

)

Copy constructor, performs deep copy

---

Member Function Documentation

virtual void addDiffPattern	(	Common::Types::CapeLong	rowIndex,
		Common::Types::CapeLong	colIndex
	)		[virtual]

Add an entry to the pattern of the LHS.

virtual void addEquation	(	const Common::Types::CapeString &	name,
		const Common::Types::CapeString &	descr,
		const Common::Types::CapeLong	startRow
	)		[virtual]

Add a named Equation with the respective (starting) row index.

virtual void addHelp	(	const Common::Types::CapeString &	_name,
		const Common::Types::CapeString &	descr,
		const Common::Types::CapeArrayLong &	idxLower,
		const Common::Types::CapeArrayLong &	idxUpper
	)		[virtual]

Add help variable to collParameters.

virtual void addIpar	(	const Common::Types::CapeString &	_name,
		const Common::Types::CapeString &	descr,
		const Common::Types::CapeArrayLong &	idxLower,
		const Common::Types::CapeArrayLong &	idxUpper
	)		[virtual]

Add integer parameter to collParameters .

virtual void addJacPattern	(	Common::Types::CapeLong	rowIndex,
		Common::Types::CapeLong	colIndex
	)		[virtual]

Add an entry to the pattern of the RHS.

virtual void addRpar	(	const Common::Types::CapeString &	_name,
		const Common::Types::CapeString &	descr,
		const Common::Types::CapeArrayLong &	idxLower,
		const Common::Types::CapeArrayLong &	idxUpper
	)		[virtual]

Add real parameter to collParameters and collRealParameters.

virtual void addSpar	(	const Common::Types::CapeString &	_name,
		const Common::Types::CapeString &	descr = Common::Types::CapeStringUNDEFINED
	)		[virtual]

Add structure parameter to collParameters .

virtual void addState	(	const Common::Types::CapeString &	_name,
		const Common::Types::CapeString &	descr,
		const Common::Types::CapeArrayLong &	idxLower,
		const Common::Types::CapeArrayLong &	idxUpper
	)		[virtual]

Add state variable to collStateVariables.

virtual void connectTransitionFrom	(	CapeLong	transIndex,
		CapeLong	placeIndex
	)		[virtual]

Add a :from link to the transition

virtual void connectTransitionTo	(	CapeLong	transIndex,
		CapeLong	placeIndex
	)		[virtual]

Add a :to link to the transition

virtual void finishPatterns

(

)

[virtual]

Finish LHS and RHS pattern initialization.

virtual const CapeString& getLoadDirectory

(

)

[virtual]

Get the Directory, which is searched for the XML data file

void Initialize

(

)

throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeOutOfResources, Common::Error::ECapeLicenceError, Common::Error::ECapeBadInvOrder) [virtual]

Virtual method, that initializes ESO with data from the XML file.

Reimplemented from DianaDAESO.

virtual Common::Types::CapeBoolean initializeData

(

void *

input

)

throw (Common::Error::ECapeFailedInitialisation) [virtual]

Main method to initialize data storage of the model, this contains the call to the xml-reader, which reads names as well as values and pattern.

This can throw ECapeFailedInitialization on failed XML-Reading and File Errors.

virtual Common::Types::CapeBoolean initializeData

(

const Common::Types::CapeString &

fileName = Common::Types::CapeStringUNDEFINED

)

throw (Common::Error::ECapeFailedInitialisation) [virtual]

Initialize the data from a file with the given filename.

virtual Common::Types::CapeBoolean initializeDataFromString

(

const Common::Types::CapeString &

data

)

throw (Common::Error::ECapeFailedInitialisation) [virtual]

Take the XML data from the string instead of XML file.

virtual void initParameter	(	const Common::Types::CapeString &	name,
		const Common::Types::CapeArrayLong &	value,
		const Common::Types::CapeArrayLong &	minValue,
		const Common::Types::CapeArrayLong &	maxValue
	)		[virtual]

Initialise the numeric values for a parameter with double values(real-parameter, explicit-transitions).

virtual void initParameter	(	const Common::Types::CapeString &	name,
		const Common::Types::CapeArrayDouble &	value,
		const Common::Types::CapeArrayDouble &	minValue,
		const Common::Types::CapeArrayDouble &	maxValue
	)		[virtual]

Initialise the numeric values for a parameter with long values (structure-parameter, integer-parameter, place).

virtual void initPlace	(	const Common::Types::CapeString &	name,
		const Common::Types::CapeArrayBoolean &	value
	)		[virtual]

Initialise the mark values for a place

virtual void initState	(	const Common::Types::CapeString &	name,
		const Common::Types::CapeArrayDouble &	dblValue,
		const Common::Types::CapeArrayDouble &	minValue,
		const Common::Types::CapeArrayDouble &	maxValue,
		const Common::Types::CapeArrayDouble &	absError
	)		[virtual]

Initialise the numeric values for states.

virtual void setLoadDirectory

(

const CapeString &

_dir

)

[virtual]

Set the Directory, which is searched for the XML data file. This is used in the ModelManager.

---

The documentation for this class was generated from the following file:

• DianaXmlDAESO.hpp
