Solver for parallel simulation. More...

#include <PARDASPKSolver.hpp>

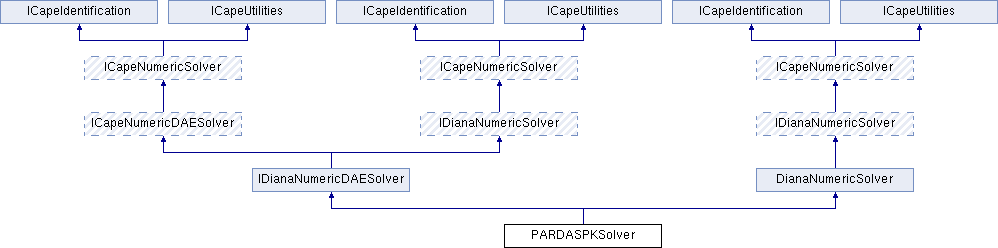

Inheritance diagram for PARDASPKSolver:

Classes
struct	sExchangeStruct
Public Member Functions
	PARDASPKSolver (Numeric::Solvers::Model::ICapeNumericModel *model) throw (Common::Error::ECapeUnknown)
const Common::Types::CapeString &	GetComponentName () const throw (Common::Error::ECapeUnknown)
void	SetComponentName (const Common::Types::CapeString &_name) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
const Common::Types::CapeString &	GetComponentDescription () const throw (Common::Error::ECapeUnknown)
void	SetComponentDescription (const Common::Types::CapeString &_description) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
Common::Collection::ICapeCollection *	GetParameters () throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl)
void	SetSimulationContext (Common::Identification::ICapeIdentification *simContextManager) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl)
void	Initialize () throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeOutOfResources, Common::Error::ECapeLicenceError, Common::Error::ECapeBadInvOrder)
void	Terminate () throw (Common::Error::ECapeUnknown, Common::Error::ECapeOutOfResources, Common::Error::ECapeBadInvOrder)
Numeric::Solvers::Solver::SolveReturn	Solve () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder, Common::Error::ECapeSolvingError, Common::Error::ECapeOutOfResources)
Common::Types::CapeArrayDouble	GetSolution () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
void	Destroy () throw (Common::Error::ECapeUnknown)
void	SetRelTolerance (const Common::Types::CapeArrayDouble &relTolValue) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds)
Common::Types::CapeArrayDouble	GetRelTolerance () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
void	SetAbsTolerance (const Common::Types::CapeArrayDouble &absTolValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds)
Common::Types::CapeArrayDouble	GetAbsTolerance () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
Numeric::Solvers::Model::CapeArrayNumericEventInfo *	AdvanceToNextEvent (Numeric::Solvers::Model::CapeArrayNumericEventInfo endConditions, Common::Types::CapeDouble &timeBefore, Common::Types::CapeDouble &timeAfter) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeBadInvOrder, Common::Error::ECapeSolvingError, Common::Error::ECapeOutOfResources, Common::Error::ECapeNoImpl)
void	setValuesFromESO ()
void	RecalculateIC ()
void	SolveWR () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder, Common::Error::ECapeSolvingError, Common::Error::ECapeOutOfResources)
Static Protected Member Functions
static void	calculateResiduals (double *T, double Y[], double YPrime[], double Delta[], int IPar[])
static void	calculateJacobian (int NEQ, double T, double Y[], double YPRIME[], double CJ, int IPAR[], int RECALC)
static void	LinearSolver (int *NEQ, double B[], int IPar[])
static void	SaveInternalStates (double X, int NEQ, int *KOLD, double PHI[], double PSI[], int IPar[])
Protected Attributes
Common::Types::CapeString	strName
Common::Types::CapeString	strDescription
Numeric::Solvers::Model::ICapeNumericModel *	pModel
	simulated model
Numeric::Solvers::Eso::ICapeNumericDAESO *	pESO
	current model ESO
Diana::DianaCollection	collParameters
	collections of the exported parameters
Common::Types::CapeBoolean	m_bStartSimulation
	flag, indicates whether it is necessary to restart integration
Common::Types::CapeBoolean	m_bNeedToInitialize
CapeBoolean	m_bNeedToRestoreState
CapeBoolean	m_bNeedToSaveState
Common::Types::CapeLong	m_lVarsQuantity
	current number of the state variables
Common::Types::CapeLong	m_lEquationsQuantity
	current number of the equations
Common::Types::CapeDouble	dblT
	is the current value of the independent variable
Common::Types::CapeDouble	dblT0
	is the initial value of the independent variable
Common::Types::CapeDouble	dblTend
	the final value of the independent variable
Common::Types::CapeLong	nVerboseLevel
	reporting level
int	nDASKPStatus
int	nDASKPStatus_old
	status of DASKP solver
CapeDouble	dblRTol
CapeDouble	dblAbsTol
double *	vecRelTol
	Array with values of relative tolerances.
double *	vecAbsTol
	Array with values of absolute tolerances.
int *	IPar
	this working array used by DASPK
CapeDouble	m_dLastInternalSolverStep
	The value of last internal solver step.
struct Diana::PARDASPKSolver::sExchangeStruct	Adresses
int	nLRW
int	nLIW
	length of RWORK and IWORK - working arrays in ddaspk.f
double *	RWORK
	[*]_old data on previous iteration
double *	RWORK_old
	real work array for daspk.f
int *	IWORK
int *	IWORK_old
	integer work array for daspk.f
double *	Y
double *	Y_old
	variables
double *	YP
double *	YP_old
	derivatives
double	T0_old
int	m_nInfo [30]
int	m_nInfo_old [30]
	info arrays for DASPK algorithm
CapeDouble	m_dMaxStep
	Maximal value of solver step.
CapeDouble	m_bNeedToPrint
CapeDouble	m_dInitialStepSize

Detailed Description

Solver for parallel simulation.

PARDASPKSolver.

Member Function Documentation

Numeric::Solvers::Model::CapeArrayNumericEventInfo* AdvanceToNextEvent	(	Numeric::Solvers::Model::CapeArrayNumericEventInfo	endConditions,
		Common::Types::CapeDouble &	timeBefore,
		Common::Types::CapeDouble &	timeAfter
	)		throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeBadInvOrder, Common::Error::ECapeSolvingError, Common::Error::ECapeOutOfResources, Common::Error::ECapeNoImpl) `[virtual]`

Advances the solution of the DAESO with respect to its independent variable until some Event(s) occurs, or an error occurs in the solution process.

Note:For dynamic problems, we cannot be certain that the Solver will be able to identify precisely the single Event which causes termination. Thus we allow it to provide a list of Event objects, together with independent variable values which "bracket" the termination point.

Parameters:

endConditions	the list of stopping conditions for this call
timeBefore	the independent variable value at the beginning of the internal step
timeAfter	the independent variable value at the end of the internal step

Implements ICapeNumericDAESolver.

static void calculateJacobian	(	int *	NEQ,
		double *	T,
		double	Y[],
		double	YPRIME[],
		double *	CJ,
		int	IPAR[],
		int *	RECALC
	)		`[static, protected]`

Jacobian calculation function - called from daspk solver (daspk.f).

static void calculateResiduals	(	double *	T,
		double	Y[],
		double	YPrime[],
		double	Delta[],
		int	IPar[]
	)		`[static, protected]`

Residuals calculation function - called from daspk solver (daspk.f).

void Destroy ( ) throw (Common::Error::ECapeUnknown) [virtual]

Deletes the Solver Component and all the objects associated to this particular Solver Component.

Implements ICapeNumericSolver.

Common::Types::CapeArrayDouble GetAbsTolerance ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets information on the absolute tolerance to be used in performing local error tests while solving the DAE system. The precise interpretation of this parameter will depend on individual implementations; the exact nature of the error measure used (e.g. local truncation error, local error etc.), and the way in which this is estimated, are not defined by CAPE-OPEN.

Implements ICapeNumericDAESolver.

const Common::Types::CapeString& GetComponentDescription ( ) const throw (Common::Error::ECapeUnknown) [virtual]

gets the description of the component.

Implements ICapeIdentification.

const Common::Types::CapeString& GetComponentName ( ) const throw (Common::Error::ECapeUnknown) [virtual]

gets the name of the component.

Implements ICapeIdentification.

Common::Collection::ICapeCollection* GetParameters ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl) [virtual]

Returns an ICapeCollection interface. This interface will contain a collection of ICapeParameter interfaces. This method allows any client to access all the Cape Open Parameters exposed by a model component. If the model component does not support exposing its parameters, it should raise the ECapeNoImpl error, instead of returning a NULL reference or an empty Collection. But if the PMC supports parameters but has for this call no parameters, it should return a valid ICapeCollection reference exposing zero parameters.

Implements ICapeUtilities.

Common::Types::CapeArrayDouble GetRelTolerance ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets information on the relative tolerance to be used in performing local error tests while solving a DAE system, as well as its current value. The precise interpretation of this parameter will depend on individual implementations; the exact nature of the error measure used (e.g. local truncation error, local error etc.), and the way in which this is estimated, are not defined by CAPE-OPEN.

Implements ICapeNumericDAESolver.

Common::Types::CapeArrayDouble GetSolution ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets all the values of the variables that solve this System.

Implements ICapeNumericSolver.

void Initialize ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeOutOfResources, Common::Error::ECapeLicenceError, Common::Error::ECapeBadInvOrder) [virtual]

The environment will order the component to get initialized through this method. Any initialisation that could fail must be placed here. Initialize is guaranteed to be the first method called by the client (except low level methods such as class constructors or initialization persistence methods). Initialize has to be called once when the component is instantiated in a particular flowsheet. When the initialization fails, before signalling an error, the component must free all the resources that were allocated before the failure occurred. When the environment receives this error, it may not use the component anymore. The method terminate of the current interface must not either be called. Hence, the environment may only release the component through the middleware native mechanisms.

Implements ICapeUtilities.

static void LinearSolver	(	int *	NEQ,
		double	B[],
		int	IPar[]
	)		`[static, protected]`

Linear solver - called from daspk solver (daspk.f).

void SetAbsTolerance ( const Common::Types::CapeArrayDouble & absTolValues ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds) [virtual]

Sets the absolute tolerance to be used in performing local error tests while solving the DAE system. The precise interpretation of this parameter will depend on individual implementations; the exact nature of the error measure used (e.g. local truncation error, local error etc.), and the way in which this is estimated, are not defined by CAPE-OPEN.

Implements ICapeNumericDAESolver.

void SetComponentDescription ( const Common::Types::CapeString & _description ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument) [virtual]

sets the description of the component.

Parameters:

_description the description of the component

Implements ICapeIdentification.

void SetComponentName ( const Common::Types::CapeString & _name ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument) [virtual]

sets the name of the component.

Parameters:

_name the name of the component

Implements ICapeIdentification.

void SetRelTolerance ( const Common::Types::CapeArrayDouble & relTolValue ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds) [virtual]

Sets the relative tolerance values to be used in performing local error tests while solving a DAE system. The precise interpretation of this parameter will depend on individual implementations; the exact nature of the error measure used (e.g. local truncation error, local error etc.) and the way in which this is estimated are not defined by CAPE-OPEN.

Parameters:

relTolValue the relative tolerance values.

Implements ICapeNumericDAESolver.

void SetSimulationContext ( Common::Identification::ICapeIdentification * simContextManager ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl) [virtual]

Allows the environment to convey the component a reference to the former's simulation context. The simulation context will be environment objects which will expose a given set of Cape Open interfaces. Each of these interfaces will allow the component to call back the environment in order to benefit from its exposed services (such as creation of material templates, diagnostics or measurement unit conversion). If the component does not support accessing the simulation context, it is recommended to raise the ECapeNoImpl error.

Parameters:

simContextManager the reference to the environment's simulation context class. For the component to use this class, this reference will have to be converted to each of the defined Cape Open Simulation Context interfaces.

Implements ICapeUtilities.

Numeric::Solvers::Solver::SolveReturn Solve ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder, Common::Error::ECapeSolvingError, Common::Error::ECapeOutOfResources) [virtual]

Attempts to solve the system of equations defined within the Model associated with this solver instance. Return will occur in different circumstances:

The attempt succeeds.
The solver gives up.
An unexpected problem ("exception") arises.
If the underlying Model contains one or more STNs, the Solver may consider a switch to a different set of active states necessary to finding a solution. In this case, it may use the MoveToNextState method of one or more of the Model's STNs during the computation. The numerical values held in the model on return should be consistent with the set of states which are active on return.

Notes:The initial guesses for this solution will be the current variable values of the Model.

Implements ICapeNumericSolver.

void Terminate ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeOutOfResources, Common::Error::ECapeBadInvOrder) [virtual]

The environment will order the component to get destroyed through this method. Any uninitialization that could fail must be placed here. Terminate is guaranteed to be the last method called by the client (except low level methods such as class destructors). Terminate may be called at any time, but may be only called once. When this method returns an error, the environment should report the user. However, after that the environment is not allowed to use the component anymore.

Implements ICapeUtilities.

The documentation for this class was generated from the following file:

PARDASPKSolver.hpp
