#include <IDASolver.hpp>

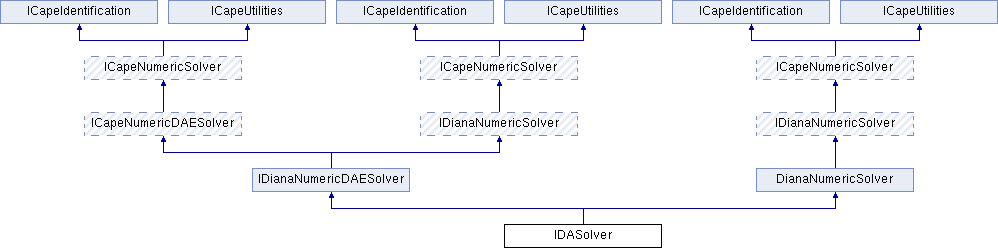

Inheritance diagram for IDASolver:

Classes
struct	IDALASolverMemRec
Public Member Functions
	IDASolver (Numeric::Solvers::Model::ICapeNumericModel *model) throw (Common::Error::ECapeUnknown)
const Common::Types::CapeString &	GetComponentName () const throw (Common::Error::ECapeUnknown)
void	SetComponentName (const Common::Types::CapeString &_name) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
const Common::Types::CapeString &	GetComponentDescription () const throw (Common::Error::ECapeUnknown)
void	SetComponentDescription (const Common::Types::CapeString &_description) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument)
Common::Collection::ICapeCollection *	GetParameters () throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl)
void	SetSimulationContext (Common::Identification::ICapeIdentification *simContextManager) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl)
void	Initialize () throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeOutOfResources, Common::Error::ECapeLicenceError, Common::Error::ECapeBadInvOrder)
void	Terminate () throw (Common::Error::ECapeUnknown, Common::Error::ECapeOutOfResources, Common::Error::ECapeBadInvOrder)
Numeric::Solvers::Solver::SolveReturn	Solve () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder, Common::Error::ECapeSolvingError, Common::Error::ECapeOutOfResources)
Common::Types::CapeArrayDouble	GetSolution () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
void	Destroy () throw (Common::Error::ECapeUnknown)
void	SetRelTolerance (const Common::Types::CapeArrayDouble &relTolValue) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds)
Common::Types::CapeArrayDouble	GetRelTolerance () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
void	SetAbsTolerance (const Common::Types::CapeArrayDouble &absTolValues) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds)
Common::Types::CapeArrayDouble	GetAbsTolerance () throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
Numeric::Solvers::Model::CapeArrayNumericEventInfo *	AdvanceToNextEvent (Numeric::Solvers::Model::CapeArrayNumericEventInfo endConditions, Common::Types::CapeDouble &timeBefore, Common::Types::CapeDouble &timeAfter) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeBadInvOrder, Common::Error::ECapeSolvingError, Common::Error::ECapeOutOfResources, Common::Error::ECapeNoImpl)
Protected Member Functions
int	calculateStructuralRank (const Diana::DianaSparseArray &dsa)
void	setValuesFromESO (bool bUpdateAbsTol=true)
void	startIntegrator ()
void	printStep ()
Static Protected Member Functions
static int	errHandler (int error_code, const char module, const char function, char msg, IDASolver rdata)
static int	calculateResiduals (Common::Types::CapeDouble Tres, N_Vector Y, N_Vector Yp, N_Vector R, IDASolver *solver)
static int	calculateJacobainDense (Common::Types::CapeLong Neq, Common::Types::CapeDouble T, N_Vector Y, N_Vector Yp, N_Vector Res, Common::Types::CapeDouble cj, IDASolver *solver, DenseMat JJ, N_Vector tempv1, N_Vector tempv2, N_Vector tempv3)
static int	IDASparseSetup (IDAMem IDA_mem, N_Vector yyp, N_Vector ypp, N_Vector rrp, N_Vector tmp1, N_Vector tmp2, N_Vector tmp3)
static int	IDASparseSolve (IDAMem IDA_mem, N_Vector b, N_Vector weight, N_Vector ycur, N_Vector ypcur, N_Vector rrcur)
Protected Attributes
Common::Types::CapeString	strName
Common::Types::CapeString	strDescription
Numeric::Solvers::Model::ICapeNumericModel *	pModel
	simulated model
Numeric::Solvers::Eso::ICapeNumericDAESO *	pESO
	current model ESO
Diana::DianaCollection	collParameters
	collections of the exported parameters
Common::Parameter::ICapeParameter *	prmLASolver
void *	memIDA
	ida memory context
Common::Types::CapeBoolean	bStartSimulation
Common::Types::CapeBoolean	bIntermediateResults
Common::Types::CapeBoolean	bCalculateConsistentIC
Common::Types::CapeLong	nVerboseLevel
Common::Types::CapeLong	nParamVisual
	maximum number of values on the screen
Common::Types::CapeLong	nStructRankLHS
	LHS matrix structural rank.
Common::Types::CapeLong	nVars
	current number of the state variables
Common::Types::CapeLong	nEqns
	current number of the equations
N_Vector	vecStates
	state vector
N_Vector	vecDerivs
	derivatives vector
N_Vector	vecId
N_Vector	vecAbsTol
	the absolute error tolerance vector
Common::Types::CapeDouble	dblT
	is the current value of the independent variable
Common::Types::CapeDouble	dblT0
	is the initial value of the independent variable
Common::Types::CapeDouble	dblTend
	the final value of the independent variable
Common::Types::CapeDouble	dblTout
	time interval for equidistant output mode
Common::Types::CapeDouble	dblRTol
	the relative error tolerance
Common::Types::CapeLong	nMaxInternalSteps
Common::Types::CapeBoolean	bSingleStepping
	flag, indicates whether solver runs in single stepping mode
Common::Types::CapeDouble	dblMaxStepSize
Common::Types::CapeLong	nMaxOrd
	specifies the maximum order of the linear multistep method
Private Attributes
Common::Types::CapeBoolean	bIDAInitialized
	flag, indicates that IDA solver initialised
Common::Types::CapeBoolean	bIDAInterruption
	flag, indicates that integration process can be terminated
Diana::DianaSparseArray	dsaJacoDiff
Diana::DianaSparseSolver	dssJacoDiff
IDALASolverMemRec	stIDALASolverMem

Detailed Description

IDASolver.

Constructor & Destructor Documentation

IDASolver ( Numeric::Solvers::Model::ICapeNumericModel * model ) throw (Common::Error::ECapeUnknown)

Main constructor.

Member Function Documentation

Numeric::Solvers::Model::CapeArrayNumericEventInfo* AdvanceToNextEvent	(	Numeric::Solvers::Model::CapeArrayNumericEventInfo	endConditions,
		Common::Types::CapeDouble &	timeBefore,
		Common::Types::CapeDouble &	timeAfter
	)		throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds, Common::Error::ECapeBadInvOrder, Common::Error::ECapeSolvingError, Common::Error::ECapeOutOfResources, Common::Error::ECapeNoImpl) `[virtual]`

Advances the solution of the DAESO with respect to its independent variable until some Event(s) occurs, or an error occurs in the solution process.

Note:For dynamic problems, we cannot be certain that the Solver will be able to identify precisely the single Event which causes termination. Thus we allow it to provide a list of Event objects, together with independent variable values which "bracket" the termination point.

Parameters:

endConditions	the list of stopping conditions for this call
timeBefore	the independent variable value at the beginning of the internal step
timeAfter	the independent variable value at the end of the internal step

Implements ICapeNumericDAESolver.

static int calculateJacobainDense	(	Common::Types::CapeLong	Neq,
		Common::Types::CapeDouble	T,
		N_Vector	Y,
		N_Vector	Yp,
		N_Vector	Res,
		Common::Types::CapeDouble	cj,
		IDASolver *	solver,
		DenseMat	JJ,
		N_Vector	tempv1,
		N_Vector	tempv2,
		N_Vector	tempv3
	)		`[static, protected]`

Static callback function, which calculates dense matrix $\partial G/\partial x+cj \partial G/\partial x'$ .

static int calculateResiduals	(	Common::Types::CapeDouble	Tres,
		N_Vector	Y,
		N_Vector	Yp,
		N_Vector	R,
		IDASolver *	solver
	)		`[static, protected]`

Static callback function, which calculates residuals $G(t,x,x')$ .

int calculateStructuralRank ( const Diana::DianaSparseArray & dsa ) [protected]

Calculates structural rank of the matrix by given pattern. Idea is quite simple, so let's do the Gaussian elimination with pivoting. With without values it is means that column rank will be amount of the non zero columns and row rank will be amount of the non zero rows. Structural rank than is equal minimum value of that values. Please, if you find counterexample, send it to miha@mpi-magdeburg.mpg.de.

void Destroy ( ) throw (Common::Error::ECapeUnknown) [virtual]

Deletes the Solver Component and all the objects associated to this particular Solver Component.

Implements ICapeNumericSolver.

static int errHandler	(	int	error_code,
		const char *	module,
		const char *	function,
		char *	msg,
		IDASolver *	rdata
	)		`[static, protected]`

Static error handler

Common::Types::CapeArrayDouble GetAbsTolerance ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets information on the absolute tolerance to be used in performing local error tests while solving the DAE system. The precise interpretation of this parameter will depend on individual implementations; the exact nature of the error measure used (e.g. local truncation error, local error etc.), and the way in which this is estimated, are not defined by CAPE-OPEN.

Implements ICapeNumericDAESolver.

const Common::Types::CapeString& GetComponentDescription ( ) const throw (Common::Error::ECapeUnknown) [virtual]

gets the description of the component.

Implements ICapeIdentification.

const Common::Types::CapeString& GetComponentName ( ) const throw (Common::Error::ECapeUnknown) [virtual]

gets the name of the component.

Implements ICapeIdentification.

Common::Collection::ICapeCollection* GetParameters ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl) [virtual]

Returns an ICapeCollection interface. This interface will contain a collection of ICapeParameter interfaces. This method allows any client to access all the Cape Open Parameters exposed by a model component. If the model component does not support exposing its parameters, it should raise the ECapeNoImpl error, instead of returning a NULL reference or an empty Collection. But if the PMC supports parameters but has for this call no parameters, it should return a valid ICapeCollection reference exposing zero parameters.

Implements ICapeUtilities.

Common::Types::CapeArrayDouble GetRelTolerance ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets information on the relative tolerance to be used in performing local error tests while solving a DAE system, as well as its current value. The precise interpretation of this parameter will depend on individual implementations; the exact nature of the error measure used (e.g. local truncation error, local error etc.), and the way in which this is estimated, are not defined by CAPE-OPEN.

Implements ICapeNumericDAESolver.

Common::Types::CapeArrayDouble GetSolution ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [virtual]

Gets all the values of the variables that solve this System.

Implements ICapeNumericSolver.

void Initialize ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeOutOfResources, Common::Error::ECapeLicenceError, Common::Error::ECapeBadInvOrder) [virtual]

The environment will order the component to get initialised through this method. Any initialisation that could fail must be placed here. Initialise is guaranteed to be the first method called by the client (except low level methods such as class constructors or initialisation persistence methods). Initialise has to be called once when the component is instantiated in a particular flowsheet. When the initialisation fails, before signalling an error, the component must free all the resources that were allocated before the failure occurred. When the environment receives this error, it may not use the component anymore. The method terminate of the current interface must not either be called. Hence, the environment may only release the component through the middleware native mechanisms.

Implements ICapeUtilities.

void SetAbsTolerance ( const Common::Types::CapeArrayDouble & absTolValues ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds) [virtual]

Sets the absolute tolerance to be used in performing local error tests while solving the DAE system. The precise interpretation of this parameter will depend on individual implementations; the exact nature of the error measure used (e.g. local truncation error, local error etc.), and the way in which this is estimated, are not defined by CAPE-OPEN.

Implements ICapeNumericDAESolver.

void SetComponentDescription ( const Common::Types::CapeString & _description ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument) [virtual]

sets the description of the component.

Parameters:

_description the description of the component

Implements ICapeIdentification.

void SetComponentName ( const Common::Types::CapeString & _name ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument) [virtual]

sets the name of the component.

Parameters:

_name the name of the component

Implements ICapeIdentification.

void SetRelTolerance ( const Common::Types::CapeArrayDouble & relTolValue ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeOutOfBounds) [virtual]

Sets the relative tolerance values to be used in performing local error tests while solving a DAE system. The precise interpretation of this parameter will depend on individual implementations; the exact nature of the error measure used (e.g. local truncation error, local error etc.) and the way in which this is estimated are not defined by CAPE-OPEN.

Parameters:

relTolValue the relative tolerance values.

Implements ICapeNumericDAESolver.

void SetSimulationContext ( Common::Identification::ICapeIdentification * simContextManager ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeFailedInitialisation, Common::Error::ECapeNoImpl) [virtual]

Allows the environment to convey the component a reference to the formers simulation context. The simulation context will be environment objects which will expose a given set of Cape Open interfaces. Each of these interfaces will allow the component to call back the environment in order to benefit from its exposed services (such as creation of material templates, diagnostics or measurement unit conversion). If the component does not support accessing the simulation context, it is recommended to raise the ECapeNoImpl error.

Parameters:

simContextManager the reference to the environment's simulation context class. For the component to use this class, this reference will have to be converted to each of the defined Cape Open Simulation Context interfaces.

Implements ICapeUtilities.

void setValuesFromESO ( bool bUpdateAbsTol = true ) [protected]

Copies values from the ESO into internal arrays.

Numeric::Solvers::Solver::SolveReturn Solve ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder, Common::Error::ECapeSolvingError, Common::Error::ECapeOutOfResources) [virtual]

Attempts to solve the system of equations defined within the Model associated with this solver instance. Return will occur in different circumstances:

The attempt succeeds.
The solver gives up.
An unexpected problem ("exception") arises.
If the underlying Model contains one or more STNs, the Solver may consider a switch to a different set of active states necessary to finding a solution. In this case, it may use the MoveToNextState method of one or more of the Model's STNs during the computation. The numerical values held in the model on return should be consistent with the set of states which are active on return.

Notes:The initial guesses for this solution will be the current variable values of the Model.

Implements ICapeNumericSolver.

void startIntegrator ( ) [protected]

Restarts integrator.

void Terminate ( ) throw (Common::Error::ECapeUnknown, Common::Error::ECapeOutOfResources, Common::Error::ECapeBadInvOrder) [virtual]

The environment will order the component to get destroyed through this method. Any uninitialisation that could fail must be placed here. Terminate is guaranteed to be the last method called by the client (except low level methods such as class destructors). Terminate may be called at any time, but may be only called once. When this method returns an error, the environment should report the user. However, after that the environment is not allowed to use the component anymore.

Implements ICapeUtilities.

Member Data Documentation

Common::Types::CapeBoolean bCalculateConsistentIC [protected]

flag, indicates whether it is necessary to evaluate consistent initial values

Common::Types::CapeBoolean bStartSimulation [protected]

flag, indicates whether it is necessary to restart integration

Common::Types::CapeDouble dblMaxStepSize [protected]

specifies the maximum absolute value of the step size (0 corresponds to the infinity value)

Common::Types::CapeLong nMaxInternalSteps [protected]

the maximum number of steps to be taken by the solver in its attempt to reach the next output time.

N_Vector vecId [protected]

specifies algebraic/differential components in the state vector. A value of 1.0 indicates a differential variable, while 0.0 indicates an algebraic variable.

The documentation for this class was generated from the following file:

IDASolver.hpp
