ICapeNumericAggregateModel Class Reference

#include <CapeModel.hpp>

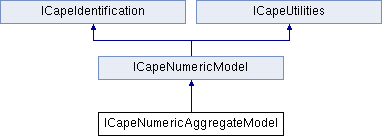

Inheritance diagram for ICapeNumericAggregateModel:

List of all members.

Public Member Functions
virtual CapeArrayNumericModel	GetModelList ()=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder)
virtual void	SetConnectionEquation (ICapeNumericModel *inputModel, Common::Types::CapeLong inputIndex, ICapeNumericModel *outputModel, Common::Types::CapeLong outputIndex)=0 throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds)
Friends
std::ostream &	operator<< (std::ostream &out_file, const ICapeNumericAggregateModel &model)

---

Detailed Description

Model allows to "concatenate" two or more previously defined models (continuous or hierarchical). This enable the creation of a complex model representing two or more units with their own variables and equations. Some equations can be added in the common ESO to represent the connections equations between these units.

---

Member Function Documentation

virtual CapeArrayNumericModel GetModelList

(

)

throw (Common::Error::ECapeUnknown, Common::Error::ECapeBadInvOrder) [pure virtual]

Gets the list of all the models associated with this Aggregate Model.

virtual void SetConnectionEquation	(	ICapeNumericModel *	inputModel,
		Common::Types::CapeLong	inputIndex,
		ICapeNumericModel *	outputModel,
		Common::Types::CapeLong	outputIndex
	)		throw (Common::Error::ECapeUnknown, Common::Error::ECapeInvalidArgument, Common::Error::ECapeBadInvOrder, Common::Error::ECapeOutOfBounds) [pure virtual]

Establish the connection between two variables that are the same in two different models of this Aggregate Model.

Parameters:

inputModel	origin Model
inputIndex	index of the variable
outputModel	destination Model
outputIndex	index of the variable

---

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	out_file,
		const ICapeNumericAggregateModel &	model
	)		[friend]

ostream output operator for the ICapeNumericAggregateModel class.

---

The documentation for this class was generated from the following file:

• CapeModel.hpp
